    • 3VA4160-4ED34-0AA0 — electrical supply Calgary

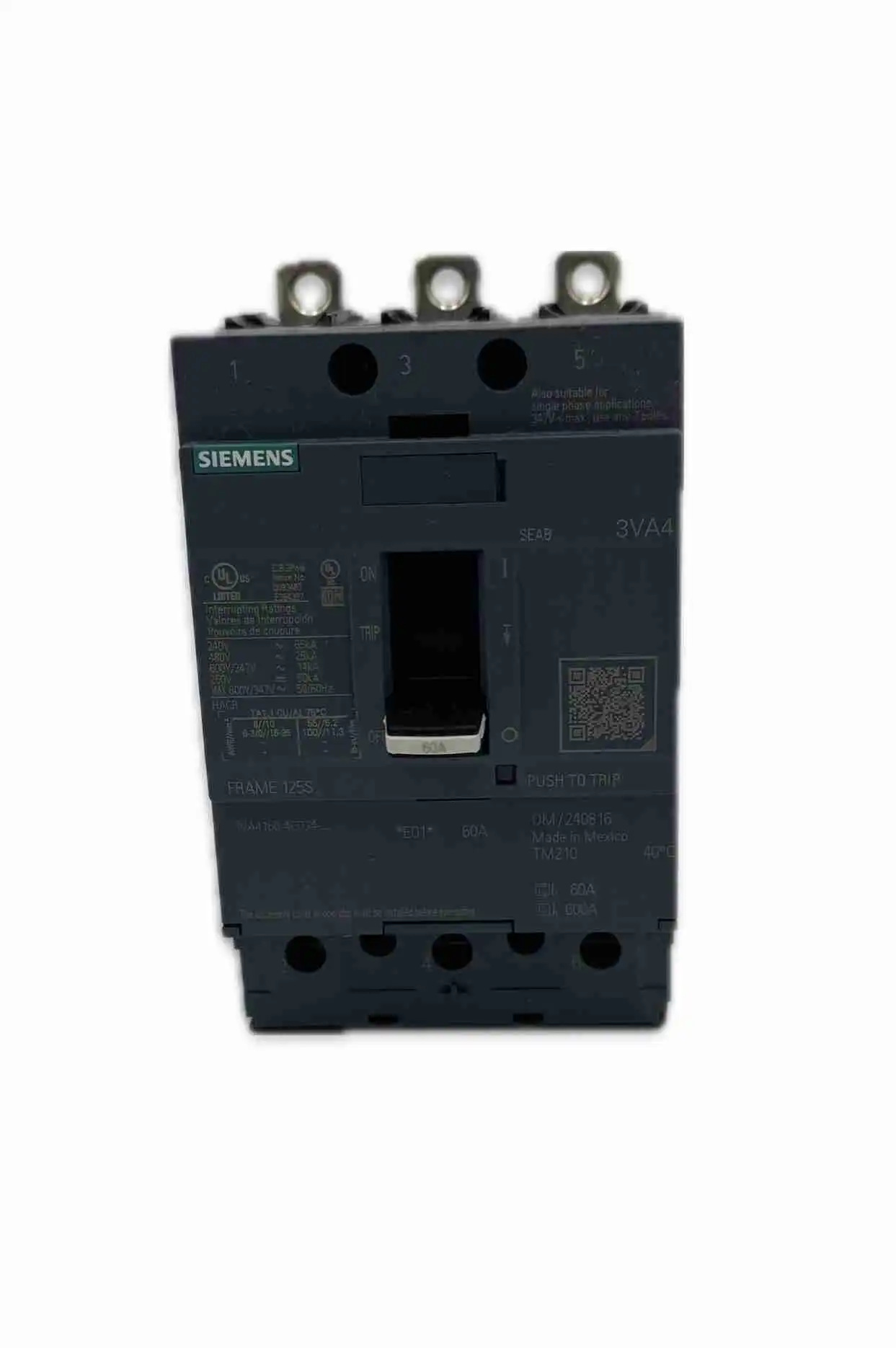

    3VA4160-4ED34-0AA0

    MCCB · 60A · 3-Pole · 600V · Bolt-On
    • Make : Siemens
    • Cat # 3VA4160-4ED34-0AA0
    • Poles # 3
    • Voltage: 600
    • Amperage: 60
    • Interrupting Capacity: 65,000 @ 240 Volt
    •                                         25,000 @ 480 Volt
    •                                         14,000 @ 600 Volt
    • Connection: Bolt on
    • Molded case Circuit Breaker
    - +
    Add to Quote
    Categories , ,
    Specifications
    BrandSiemens
    TypeMolded-Case (MCCB)
    Amperage60 A
    Poles3-Pole
    Voltage600V
    Interrupting Rating14 kA
    MountingBolt-On
    Frame / Series3VA
    Catalogue #3VA4160-4ED34-0AA0
    Panel & Switchboard Compatibility

    The Siemens 3VA4160-4ED34-0AA0 is a 3-pole, 60A, 600V bolt-on molded-case circuit breaker (MCCB) from the Siemens 3VA frame series. As an industrial-grade MCCB, it is designed for installation in commercial and industrial panelboards, switchboards, and motor-control centres — not residential loadcentres. It is compatible with Siemens 3VA-series compatible mounting hardware and bus systems rated for bolt-on MCCB breakers.

    • Interrupting capacity: 65 kA @ 240V · 25 kA @ 480V · 14 kA @ 600V
    • Connection: Bolt-on termination
    • Voltage rating: 600V AC — suited for Canadian 347/600V three-phase distribution systems

    Mounting compatibility depends on your specific panelboard or switchboard model. Send us your enclosure/panelboard model and we'll confirm fit before you order.

    The 3VA4160-4ED34-0AA0 is rated at 14,000A (14 kA) interrupting capacity at 600V. It also carries higher ratings at lower voltages: 65 kA at 240V and 25 kA at 480V — making it well suited to Canadian 347/600V three-phase industrial distribution systems where a full 600V rating is required.

    No. The 3VA4160-4ED34-0AA0 is an industrial molded-case circuit breaker (MCCB) intended for commercial and industrial panelboards and switchboards. It is not designed for, and will not fit, standard residential loadcentres. If you need a 3-pole breaker for a residential or light-commercial panel, contact our team and we'll point you to the right product.

    The Siemens 3VA series is a current-generation industrial MCCB line, but specific configurations like this 60A 600V 3-pole bolt-on variant can be difficult to source quickly through standard channels. Northern Breaker Group specialises in exactly these harder-to-find industrial breakers. Contact us for a quote — we serve customers across Canada from our Calgary, Edmonton, and Vancouver locations.
