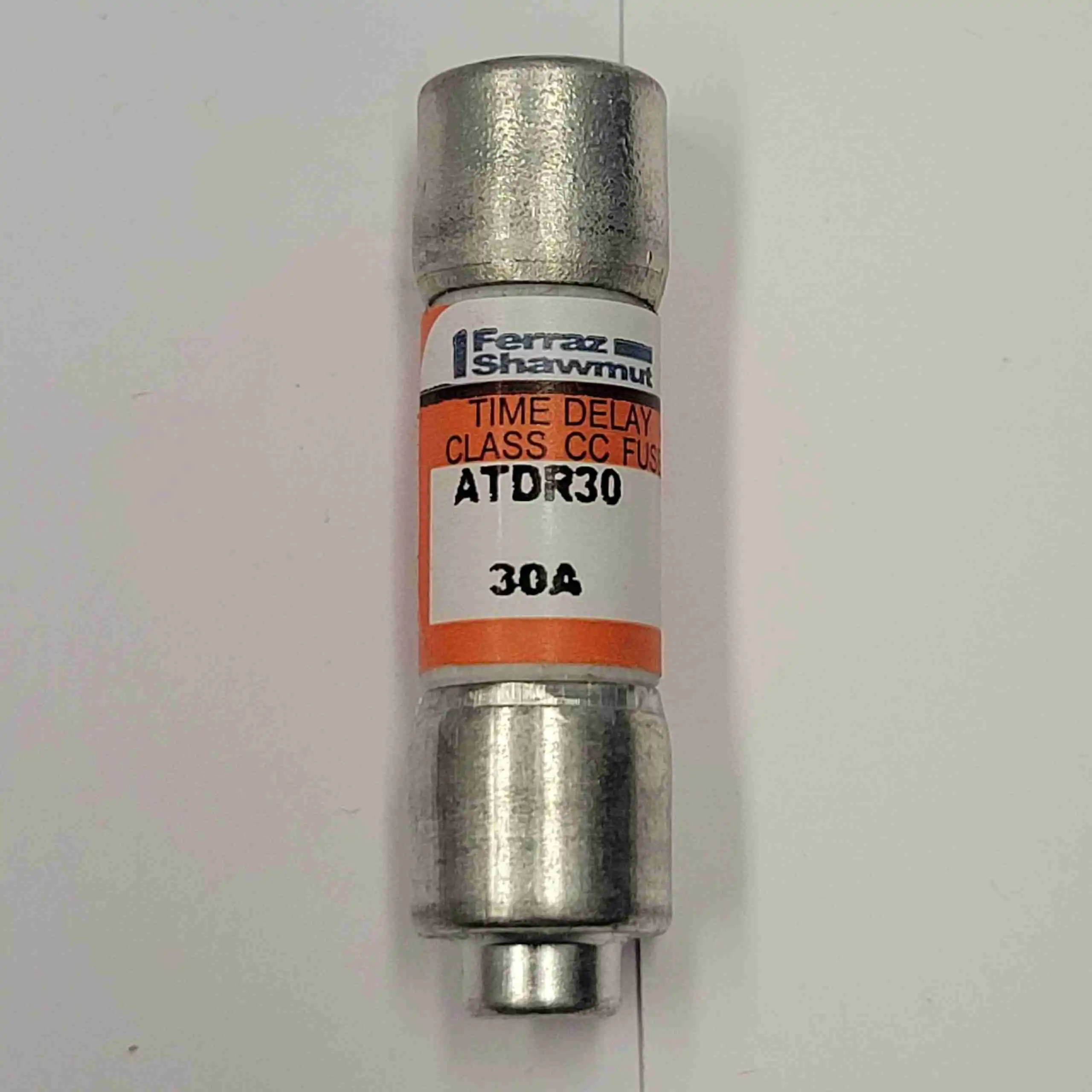

ATDR30 – GOULD 30A 600V CLASS CC TIME DELAY FUSE

The ATDR30 uses the standard Class CC form factor (10×38 mm), so it fits any Class CC-rated fuse holder or fuse block rated to 600V — from manufacturers such as Bussmann, Littelfuse, and Mersen. Ensure the holder is specifically labelled for Class CC fuses, as Class CF and Class G holders are not interchangeable. Contact us if you need help identifying a compatible holder for your panel or control equipment.

The ATDR series features a time delay (dual-element) design, which allows it to ride through brief motor starting surges and inrush currents without nuisance blowing — making it well-suited for motor branch circuits, control transformers, and other inductive loads. A fast-acting Class CC fuse would trip on those same harmless transients. For resistive loads, a fast-acting fuse may be appropriate, but for most industrial and commercial motor loads the ATDR's time delay offers much better selectivity.

The Gould brand was absorbed into the Mersen (formerly Ferraz Shawman) product line, and the ATDR series may be sourced under updated part numbers. Common cross-references include the Bussmann FNQ-R-30 and the Littelfuse CCMR030 — both Class CC time delay fuses rated 30A 600V 100kA. Northern Breaker Group specializes in obsolete and hard-to-find fuses; contact us or request a quote and we'll source the exact part or a verified equivalent for you.
