ETNH2007B-3

The H2007B-3 is designed for use with Eaton Freedom Series NEMA overload relays — specifically those rated for 32A or 75A continuous. It is not interchangeable with IEC-style or non-Freedom Series relays. If you're unsure which relay you have, share the relay catalogue number with us and we'll confirm compatibility.

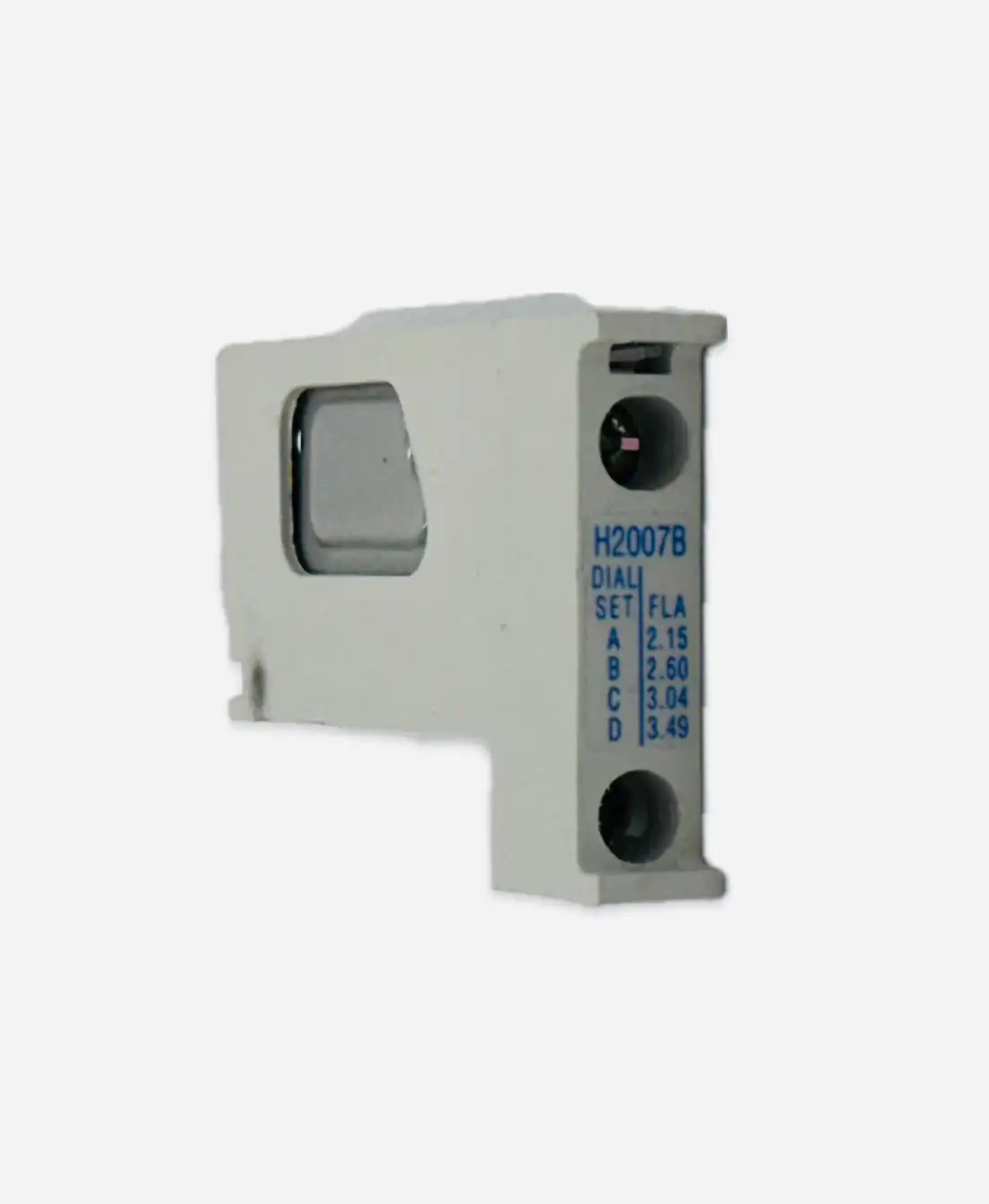

The H2007B-3 offers four dial positions corresponding to different full-load current (FLA) settings: A = 2.15 A, B = 2.60 A, C = 3.04 A, and D = 3.49 A. Match the dial position to the motor's nameplate FLA. If the motor FLA falls between two positions, standard practice in Canada (per CSA/CEC guidelines) is to select the position closest to — but not exceeding — the motor's rated FLA, unless your specific application requires otherwise.

Yes — heater coils like the H2007B-3 are replaceable field components and do not require replacement of the full overload relay assembly, provided the relay itself is undamaged. Eaton Freedom Series heater coils can be harder to source as the line matures, but Northern Breaker Group specializes in exactly these kinds of obsolete and hard-to-find control components. Contact us for current stock availability and lead times.
