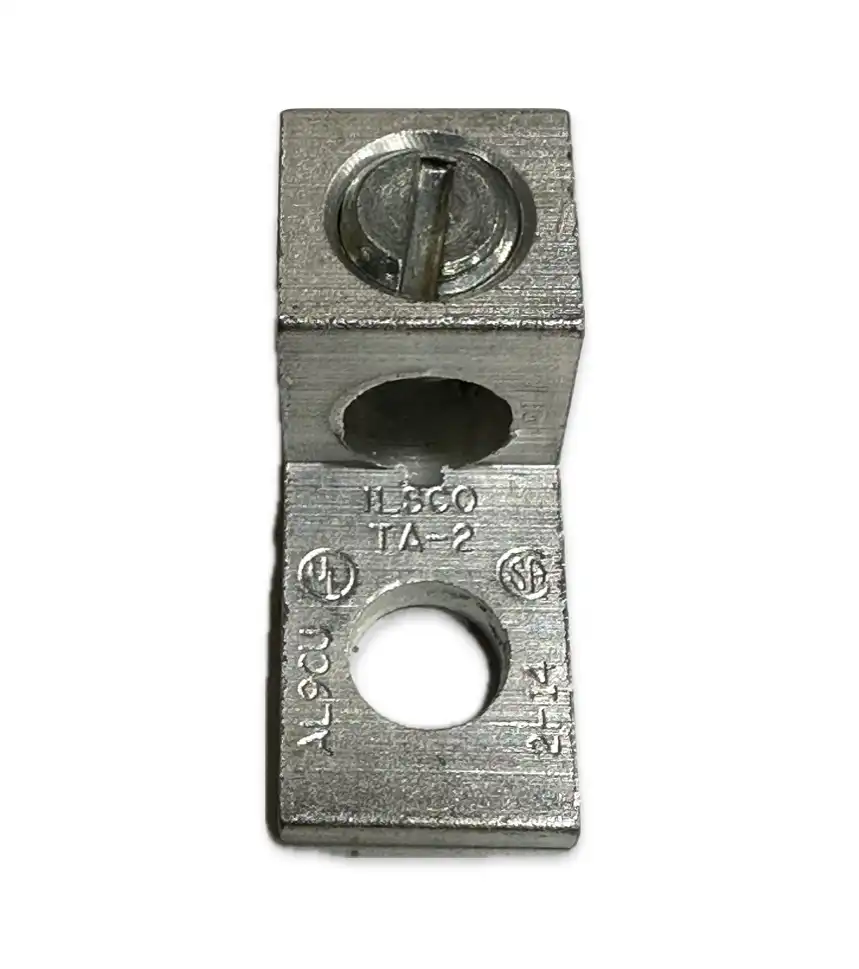

ILSTA-2 ILSCO Aluminum Mechanical Lug #14-2 1 Port 1/4in Hole

Yes. The TA-2's tin-plated aluminum body is rated for use with both aluminum and copper conductors ranging from #14 AWG to #2 AWG. The tin plating helps prevent galvanic corrosion at the connection point, making it suitable for bi-metal terminations. Always apply an appropriate anti-oxidant compound when terminating aluminum conductors, as recommended by Canadian Electrical Code (CEC) best practices.

The TA-2 has a single 1/4-inch mounting hole for bolting directly to a bus bar, lug pad, or equipment terminal. The conductor is secured via the mechanical set-screw clamping mechanism. Always torque the set-screw and mounting bolt to the manufacturer's specified values — refer to the ILSCO cut sheet (linked in the product specs) for exact torque requirements before installation.

Yes. The TA-2 carries both UL Listing and CSA Certification, making it fully compliant for use in Canadian installations under the Canadian Electrical Code (CEC). It is commonly used in residential and light commercial panelboards, meter bases, and service equipment where a compact, single-port mechanical lug termination is required.
